Waya_Havoc

Created Date: 2025-02-21/ updated date: 2025-02-24
    Owner & Collaborators
    License
    Waya_Havoc by FablabShinagawa, WayaHavoc, ChandimaLakshan1, RuwanThilina1, Thanya, Suchira, ChithsaraBasitha is licensed under the Creative Commons - Attribution license.
    Summary
    SARMA in Sri Lanka-Team5:

    Materials

      Tools

        Blueprints

          Making

          • Our Need Knower

            0
            The client is a bright 14-year-old boy with a passion for playing the piano, basketball, and tennis. He loves spending leisure time with his elder sisters. Despite facing challenges, this clever young boy with high spirits dreams of becoming a pilot one day.

            Comments

              • Physical Characteristics

                0
                The following features are exhibited in his right side upper limb:
                • Average shoulder and elbow active movements.
                • Limited forearm active movements.
                • Wrist in flexed position and limited active movements in the wrist and fingers.
                • Spasticity +
                • Able to raise hand up to the mouth and forehead level.

                Comments

                • Procedure of Decision Making

                  0
                  This starts with history taking and ICF mapping to understand the user's context and needs. It progresses through sketching, making, and refining the design based on feedback from the need-knower. The process ultimately ensures it meets the identified requirements effectively.

                  Comments

                  Add Annotation Order

                • Subject/Needs

                  0
                  Our client, with limited forearm, wrist and finger movements, faces challenges to grasp objects for eating, learning, and leisure activities. He enjoys playing the piano, drawing, and mobile games and seeks ways to regain his bimanual hand functions to explore the world again.

                  Comments

                    • Needs Assessment

                      0
                      We followed the ICF framework by WHO to view this young boy holistically. The identified needs were addressed under the Activities of Daily Living. This includes eating and drinking (self-care), education (productivity), and playing the piano and mobile games (leisure).

                      Comments

                      Add Annotation Order

                    • Ideation

                      0
                      Objectives:
                      Our need knower to become independant during his,
                      1. meal times
                      2. Writing/drawing activities
                      3. Leisure activities

                      by using his preferred dominant hand facilitated through 3D printed tools.

                      Comments

                        • Our first design

                          0
                          Initially we designed a wearable device with forearm support, serving as a universal tool for multiple tasks.
                          Drawbacks
                          • Discomfort for the user
                          • Excessive dependency on others
                          • User negative feedback
                          These challenges led us to refine our design for better functionality and independence.

                          Comments

                          • Final sketch

                            0
                            We designed a universal gadget for

                            1. Easy spoon and fork attachment,for eating and drinking
                            2. A rubber press for piano and typing
                            3. A grip for rulers, pens, and pencils
                            4. A phone holder

                            and an individualized toolbox for easy tool storage and transport.

                            Comments

                            • Measurement Taking Process

                              0
                              Challenges
                              • Accuracy of the measurements of contours/curvatures
                              • Accurate measurements achieving both comfortability and stability

                              How we overcame the challenges
                              • Used a wire and clays for accuracy in capturing contours
                              • Used a ruler to ensure precise dimensions
                              • User feedback during the process

                              Comments

                              Add Annotation Order

                            • The prototype 01

                              0
                              The universal grabber is a versatile tool designed with interchangeable features. It can function as a smartphone holder, spoon holder, key/piano pressing device, and ruler-holding tool. This adaptive aid aims to help the client perform tasks independently.

                              Comments

                                Add Annotation Order

                              • The prototype 02

                                0

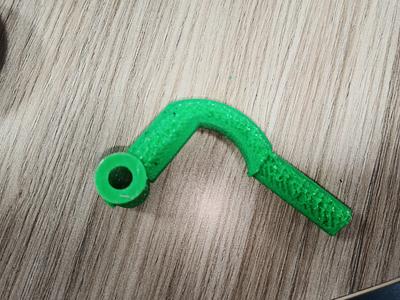

                                The Pen holder is designed to securely hold a pen or pencil, making drawings easier. With practice over time, he will create drawings that provide entertainment and keep his right hand active. Through this phototype, we are not focusing on his writing with his right hand.

                                Comments

                                  • Our failed attempts

                                    0
                                    This prototype failed due to incorrect bends and incomplete, improper fillings. These design flaws led to functionality issues and an inadequate fit. We recognized these shortcomings and were working to refine the design with accurate measurements and proper fillings.

                                    Comments

                                    Add Annotation Order

                                  • The prototype 03

                                    0
                                    The phone holder helps him to use his mobile phone more easily. He loves to play Minecraft game in online and he plays it by using his left hand. With this holder, he can enhance his education and entertainment while making daily interactions more accessible.

                                    Comments

                                      • Our failed attempts

                                        0
                                        This 3D design failed because the phone couldn’t be placed on it properly. The curved part caused the phone to be slippery, making it unstable. We were addressing this issue  to provide better grip and ensure the phone stays securely in place for improved functionality. Failed phone holder

                                        Comments

                                        Add Annotation Order

                                      • The prototype 04

                                        0
                                        We are designing The UniGrio Toolkit to safely store and organize tools. This compact, durable toolkit ensures secure storage and easy access, making it convenient to transport tools to any location.

                                        Comments

                                          • Specialities

                                            0
                                            In the toolbox, we have allocated specific spaces for each tool to ensure safe storage. To further protect the tools, we have added sponge padding, preventing damage and ensuring they remain securely in place.

                                            Comments

                                            Add Annotation Order

                                          • The prototype 05

                                            0
                                            The rubber presser helps securely hold a ruler or other objects, preventing slipping. Its design ensures a stable grip, making tasks like measuring or drawing easier and more precise. This tool enhances control and independence, improving the overall user experience.

                                            Comments

                                                Add Annotation Order

                                              • Our commitement

                                                0
                                                Team members
                                                • Leader :Mr. Suchira Hathurusinghe
                                                • Sub-leader : Mr. Chandima Lakshan
                                                • Prototype leader : Mr. Ruwan Bandara
                                                • Testing leader : Mr. Chithsara Basitha
                                                • Documentation leader : Miss Vihanga Lihini
                                                • Presentation leader : Miss Thanya priyadarshana

                                                Comments

                                                  • Special Thanks for..

                                                    0
                                                    Special thanks for Mr. Supun Waduge (Occupational Therapist), Mrs. Gayanthi Kodituwakku (Lecturer/SLT) , Miss Lakna Pussella (UG|Bsc. SLT), Miss Aushika Dillrangi (UG|Bsc. OT)

                                                    Comments

                                                    Add Annotation Order
                                                  Add Card Order

                                                  References

                                                    Usages

                                                    • The universal grabber

                                                      The universal grabber is designed with interchangeable features, serving as a smartphone holder, spoon holder, key/piano pressing device, and holding tool. These versatile aids aim to support our client in performing tasks independently, reducing the need for assistance and promoting self-reliance.

                                                    • Pen/ Pencil holder

                                                      The pen holder securely holds a pen or pencil, making drawing easier for him. Over time, it helps keep his right hand active and engaged, offering both entertainment and therapeutic benefits, while supporting his creativity and learning.

                                                    • Mobile phone holder

                                                      The phone holder helps him use his mobile phone more easily. Designed for his interest in Minecraft, it enables better gameplay with his left hand. It also provides easier access to educational content and daily interactions, enhancing both his learning and entertainment experiences independently.

                                                    • Future prospectives

                                                      Future prospects include customizing the tools for individual needs, integrating smart technology for easier control, using advanced materials for comfort and durability, to other daily activities, and collaborating with healthcare professionals for effective support and therapy outcomes.

                                                    Project comments
